Product Description

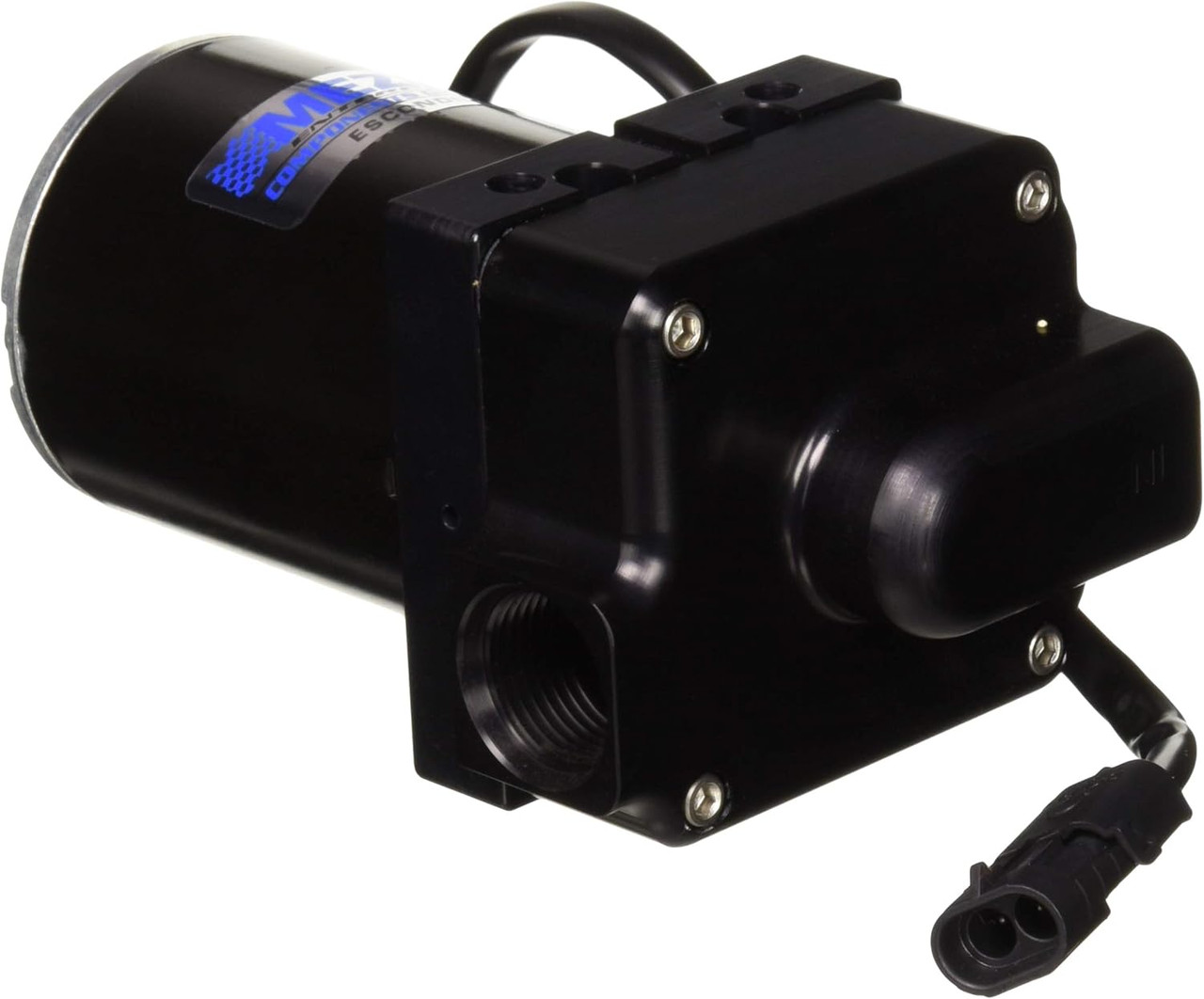

Meziere WP136S
Mini Remote Mount Inline Electric Water Pump Single Outlet
Same that we use on our Racecraft Dragsters
Works awesome on any 12v or 16v systems
SHIPS FREE TO US 48 STATES, WITHIN 24 HOURS OF PURCHASE ON BUSINESS DAYS
RETAILS $319.95
Mini Inline Electric Water Pump
- Single Inlet / Outlet
- 20 gpm
- 12V Motor
- Anodized Black
These water pumps use Meziere's special winding motor that delivers more than 3,000 hours of reliable service.
The pump housing and impeller are CNC-machined 6061-T6 billet aluminum, and the large main shaft is stainless steel with a ceramic seal.
- Finishing The System: The fittings need to be ordered according to the size of the radiator hoses.
- Amperage draw: Under normal use the pump will draw 5-6 amps.
- Overall Height Dimension: The standard pump is 7.25" high overall and about 3.5" square.
- Pump Weight: This application weighs 5.2 lbs.
- The pump should not be powered while charging your 16 volt system.
Features
- Height: 7.25''
- Stainless steel hardware
- Free-Flow Rate: 20 gallons per minute
- Remote mount inline design for universal fit
- Stainless steel main shaft with premium ceramic seal
- Requires O-ring AN fittings (common on many pumps)
- Single inlet / outlet female port threaded -12AN to accept a variety of fittings (sold separately, available on our website)
- Fittings available, sold seperately:
- 12 male to -12 male
- 12 male to -10 male
- 12 male to -08 male
Specifications:
Amp Draw
5.00 amps
Flow Rate @ 12 Volts (gpm)
20 GPM
Hose Adapter Included
No
Hose Adapter Required
Yes
Hose Adapter Thread Size
-12 AN
Mounting Brackets also available on our website
